VESSEL REVIEW | Jet-powered line boat for Port Hedland

Photos: Jetwave Marine Services

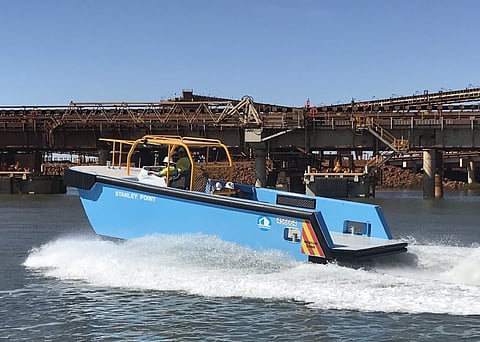

Western Australia’s Dongara Marine has delivered its second work boat for operation in the world’s largest bulk port. Jetwave Stanley Point has been operating in Port Hedland since shortly after builder Dongara Marine completed it in late April this year.

Owner Jetwave Marine Services approached Dongara Marine after learning of the Western Australian boatbuilder’s first bulldog-class work boat which was delivered to the Pilbara Ports Authority (PPA) in mid-2018.



While the PPA primarily uses its vessel for harbour maintenance activities in Port Hedland and Dampier, Jetwave Marine Services wanted a similar design but customised for work as a lines boat. It also had a preference for diesel inboard and waterjet propulsion rather than the outboards used on the PPA’s vessel.

The naval architects at Southerly Designs modified their original design to provide the expected capability and a formal proposal was made.



With a length overall of 10 metres and beam of 3.2 metres, Jetwave Stanley Point is slightly longer and wider than the original Bulldog class but retains the tried and tested “punt”-style hullform with modified forward sections. The former provides for stability, deck area, and carrying capacity while the less flat bow shape reduces resistance and improves head seas performance.

The dimensional variation reflects and enables the propulsion change, including providing for an open transom with duckboard to both protect the waterjet and enable lines to be efficiently handled over the stern.

Other features that reflect the vessel’s use for lines handling include a towing crucifix rated to five tonnes, and the ability to develop 1.2 tonnes of bollard pull, which was confirmed on trials. Jetwave Stanley Point was also designed, built, and equipped to ensure there are no external fittings or other potential catch points for ships’ lines.

Jetwave Marine Services is also using the vessel to transfer personnel within the port, and thus Jetwave Stanley Point was placed into AMSA NSCV 2D survey for up to six passengers and two crew.

Even though speed was important, Dongara Marine fabricated the vessel with scantlings that exceed the NSCV minimum requirements.

“We know from our own experience as professional mariners that robustness and longevity are extremely valuable to operators, especially for boats like this that work in close quarters harbour situations and demanding environmental conditions,” explained Dongara Marine’s Managing Director Rohan Warr. “For that reason we almost exclusively used six millimetre aluminium plate for the structure.”



Despite the resultant weight penalty, the utility vessel has a maximum speed of 32 knots and can comfortably cruise at 24 knots. Power comes from a single Yanmar diesel driving a HamiltonJet HJ322 waterjet.

A North West Australia-based company offering offshore and port service vessels plus quay-side support across Australia, Jetwave Marine Services has grown rapidly since being formed a little over a decade ago. It currently operates a fleet of some 20 vessels including tugs, utility vessels, barges, multi-cats and port service vessels.

Michael Hansen said the new vessel, which is named for a geographic feature in Port Hedland, was reflective of the company’s commitment to the port and its users.

Jetwave Stanley Point is the first of four new assets making their way to our Port Hedland operations,” he said. “We are committed to expanding the depth and breadth of the services we provide there.”

Jetwave Stanley Point
SPECIFICATIONS
Type of vessel: Lines/personnel transfer boat
Survey: Australian Maritime Safety Authority (AMSA) – National Standard for Commercial Vessels (NSCV) Class 2D – Non-Passenger vessel for partially smooth water operations
Port: Port Hedland, Western Australia
Owner: Jetwave Marine Services, Australia
Operator: Jetwave Marine Services, Australia
Designer: Southerly Designs, Australia
Builder: Dongara Marine, Australia
Construction material: Aluminium
Length overall: 10.0 metres
Beam: 3.2 metres
Draught: 0.6 metres
Main engine: Yanmar 6LY2A-UTP
Gearbox: Twin Disc 5050 SC
Propulsion: HamiltonJet HJ322 waterjet
Maximum speed: 32 knots
Cruising speed: 24 knots
Bollard pull 1.2 tonnes
Fuel capacity: 600 litres
Sounder / plotter Lowrance
Radios 2 x Icom VHF
Electronics supplied by Geraldton Marine Electronics
Crew: 2
Passengers: 6
