VESSEL REVIEW | TSM Odet – Harbour tug built for French Mediterranean coast

VESSEL REVIEW | TSM Odet – Harbour tug built for French Mediterranean coast

TUG AND SALVAGE WEEK

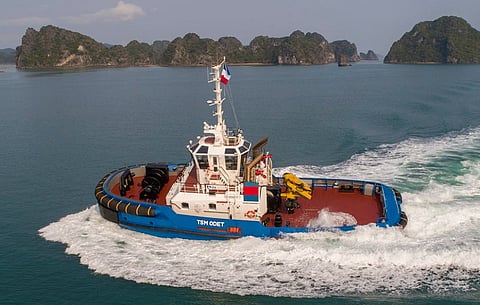

Photo: TSM

French operator Thomas Services Maritimes (TSM) has taken delivery of a new ASD tug built by Damen Song Cam Shipyard in Vietnam.

The Bureau Veritas-classed TSM Odet has an LOA of 28.57 metres, a beam of 11.43 metres, a maximum draught of 4.8 metres, and a displacement of 516 tonnes.

The tug is powered by Caterpillar 3512C main engines that produce 3,806kW at 1,800 rpm to drive Kongsberg Maritime 2,500mm propellers. This arrangement delivers a bollard pull of 60 tonnes and a maximum speed of 13.6 knots. The vessel is highly manoeuvrable with an ergonomic deck lay-out, allowing easy access to winches, bollards, and fairleads.



The tug also boasts a firefighting pump, two foam/water monitors with a combined discharge rate of 2,400 cubic metres per hour, and a Heila deck crane with a maximum lifting capacity of 3.6 tonnes. The clear deck has a total area of 35 square metres, allowing it to accommodate cargo totalling 30 tonnes.

Photo: TSM

A winterisation package will ensure safe operations year-round off France’s Mediterranean coast. The HVAC system uses excess heat from the engines while Damen’s proprietary double glazing safety glass increases comfort when the heating or the air conditioning is in operation.

Damen also equipped the tug with a digital alarm, monitoring and control system (AMCS), which integrates data from all systems on board that are connected by sensors and controls. The builder said this connectivity also allows for remote monitoring, enabling the owners to optimise fleet performance and efficiency.

The navigation and communication electronics consist of VHF radios from Sailor and Jotron, a Cassens and Plath compass, an autopilot and GPS from Simrad, and an echosounder, radar, and AIS supplied by Furuno. Two Norselight searchlights are also fitted. Power for these and other onboard systems is drawn from two Caterpillar C4.4 107kVA generators.

Accommodations are available for eight crewmembers.

TSM Odet will be operated out of the Port of Sete on the French Mediterranean coast. TSM will employ the new tug for port operations, terminal operations, and sea towage.

Click here for more news and gear stories, feature articles, and vessel reviews as part of this month’s focus on the tug and salvage sector.

TSM Odet
SPECIFICATIONS
Type of vessel: Harbour tug
Classification: Bureau Veritas
Port of registry: Sete, France
Flag: France
Owner: Thomas Services Maritimes, France
Designer: Damen Shipyards Group, Netherlands
Builder: Damen Song Cam Shipyard, Vietnam
Hull construction material: Steel
Superstructure construction material: Steel
Deck construction material: Steel
Length overall: 28.57 metres
Beam: 11.43 metres
Draught: 4.8 metres
Displacement: 516 tonnes
Deadweight tonnage: 30
Main engines: 2 x Caterpillar 3512C, each 1,903 kW at 1,800 rpm
Propulsion: 2 x Kongsberg Maritime US 205 propellers
Generators: 2 x Caterpillar C4.4 TA, each 107 kVA
Maximum speed: 13.6 knots
Hydraulic equipment: 2 x Azcue CA-50 pumps
Radar: Furuno FAR 1518-BB
Depth sounder: Furuno FCV-628
Radios: 2 x Sailor 6222 VHF; Jotron Tron TR-20 VHF
Autopilot: Simrad AP-70
Compass: Cassens and Plath Reflecta 11
GPS: Simrad GN70/HS80A
AIS: Furuno FA-170
Crane: Heila HLM 10-3S
Searchlights: 2 x Norselight
Firefighting equipment: Pump; 2 x monitors
Fuel capacity: 67.8 cubic metres
Freshwater capacity: 14 cubic metres
Crew: 8
Operational area: Mediterranean Sea, France
