VESSEL REVIEW | Semaih – UAE operator adds newbuild to harbour towage fleet

TUG AND SALVAGE WEEK

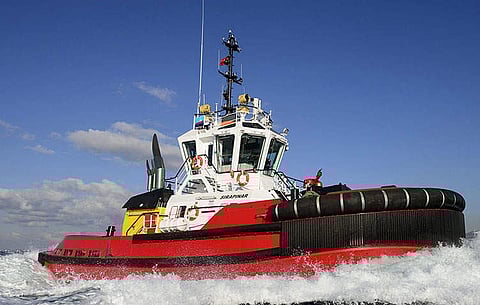

Photo: Sanmar Shipyards

The Safeen Group, the marine arm of the AD Ports Group of the UAE, has taken delivery of a new ASD harbour tug from Sanmar Shipyards of Turkey. The Robert Allan Ltd-designed Semaih is ideal for ship handling duties with a design based on an intended low-manning operation with a high degree of machinery automation.

The RINA-classed tug has an LOA of 22.4 metres, a moulded beam of 10.85 metres, a maximum draught of 4.89 metres, and two Caterpillar 3512C 1,500kW, IMO Tier II diesel engines driving Schottel fixed-pitch propellers to deliver a bollard pull of 50 tonnes and a free running speed of 12 knots.

The deck equipment includes a DMT electrically-driven fore winch, a Data Hidrolik tow hook with pneumatic auto-release, and a capstan. For fendering, the tug relies on W-type rubber on the stem and stern, D-type rubber on the sides, and 800 ID by 400 ID cylindrical heavy duty rubber on the bow.

Photo: Sanmar Shipyards

The tug can also take on firefighting duties thanks to the installation of a manually-operated monitor that draws water from a pump driven by the main engines. The pump has a flow rate of 1,200 cubic metres per hour.

The navigation and communications suite includes a radar, a GPS, an echo sounder, a chart plotter, a magnetic compass, an AIS/autopilot, a speed log, BNWAS, and area A2 GMDSS. Electrical power for these and other systems is supplied by two Caterpillar C4.4 diesel generators.

The accommodation spaces include a captain’s cabin with washbasin, two double cabins, a mess/lounge, a galley, and a water closet with shower. All interior spaces have HVAC and IMO-approved teak imitating floor surfaces. Sound levels are also greatly reduced due to resilient mounting for the engines and essential equipment including hydraulic pipes.

Semaih joins three earlier Sanmar-built, 32-tonne bollard pull tugs in the Safeen fleet.

Photo: Sanmar Shipyards

Click here for more news and gear stories, feature articles, and vessel reviews as part of this month’s focus on the tug and salvage sector.

Semaih
SPECIFICATIONS
Type of vessel:Harbour tug
Classification:RINA, C Hull and Machinery, Unlimited Navigation, Tug, IWS, MLC Design
Flag:UAE
Owner:AD Ports Group, UAE
Operator:Safeen Group, UAE
Designer:Robert Allan Ltd, Canada
Builder:Sanmar Shipyards, Turkey
Length overall:22.4 metres
Beam:10.85 metres
Draught:4.89 metres
Main engines:2 x Caterpillar 3512C, each 1,500 kW
Propulsion:2 x Schottel fixed-pitch propellers
Generators:2 x Caterpillar C4.4
Maximum speed:12 knots
Bollard pull:50 tonnes
GMDSS:A2
Winch:DMT
Other deck equipment:Data Hidrolik tow hook
Fendering:W-type rubber; D-type rubber; cylindrical
Firefighting equipment:Pump; monitor
Type of fuel:Diesel
Accommodation:Captain’s cabin; 2 x double cabins; mess/lounge; galley; water closet
