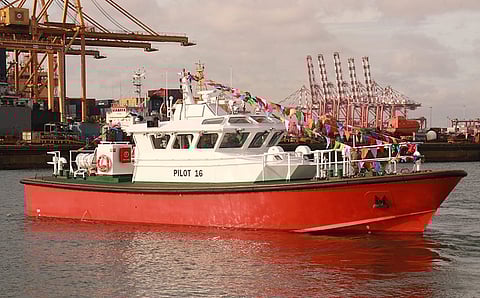

Colombo Dockyard has delivered two pilot launches built for the Sri Lanka Ports Authority. The two vessels are the first and second of a three-vessel contract with the third vessel currently in build.

The pilot boats were of a revised repeat design supplied by Macduff Ship Design of Scotland. The launches will serve to transport pilots from shore to ship and can accommodate a total number of eight people including four crewmembers and four pilots.

Teignbridge ad April 2020

The design brief matched very closely to that of Macduff’s recently completed series of three 19-metre pilot boats built for Saudi Sea Ports. The boats needed to achieve 22 knots at trials and offer good sea keeping characteristics to allow for safe operation. According to Macduff, there were some challenges with the increased range requirement, so additional fuel was required along with changes to engine ratings, but with the addition of two new midships fuel tanks, all requirements were met.

“The addition of increased fuel capacity whist maintaining performance and trim without compromising the limited space for crew in a vessel of this type,” was the biggest challenge in designing the vessel, Macduff told Baird Maritime.

Pilot 16 and Pilot 17 were designed to hold a high degree of stability and comfort in all weather conditions and provide a stable platform during embarking and disembarking pilots. The vessels’ hulls are built of steel, and the wheelhouses of aluminium.

They are powered by two Caterpillar C32 main engines driving through ZF3050A gearboxes with 2.52:1 reduction ratio to 1,050mm diameter fixed pitch propellers supplied by Teignbridge Propellers. On sea trials the pair achieved service speeds of 22 knots.

The propulsion system was kept as similar to previous vessels as possible, although the change in engine rating led to some challenges. The propeller design was completed by Teignbridge, which led to the preferred gear ratio selection to ensure optimal performance at the vessels’ operational speeds.

“It was interesting to work on a repeat build with a new client on a vessel with such tight tolerances and understand that there needs to be great flexibility in the design team even in these circumstances,” commented Macduff. “This has led to high levels of cooperation between Macduff Ship Design and Colombo Dockyard, which has already led to the order of a further vessel of similar design through the shipyard.”

The additional pilot boat has been confirmed to be for Japan’s Kowa Group, and will be a further variant of this vessel.

More Pilotage Week reviews, features and news right here

Pilot 16 and Pilot 17
Type of vessel: Pilot boats
Classification: Lloyds Register
Port of registry: Colombo
Flag: Sri Lanka
Owner: Sri Lanka Port Authority
Designer: Macduff Ship Design, UK
CAD software: Maxsurf and Microstation
Builder: Colombo Dockyard , Sri Lanka
Hull construction material: Steel
Superstructure construction material: Aluminium
Deck construction material: Steel
Length overall: 19.0 metres
Length bp: 16.8 metres
Beam: 5.5 metres
Draught: 1.6 metres
Depth: 2.72 metres
Displacement: 60 tonnes
Deadweight tonnage: 8.0 tonnes
Gross tonnage: 57
Main engines: 2 x Caterpillar C32
Gearboxes: 2 x ZF 3050A
Propulsion: Teignbridge propellers
Generator: 17.5 kW
Maximum speed: 22 knots
Range: 190 nm
Fuel capacity: 4,800 litres
Freshwater capacity: 500 litres
