VESSEL REVIEW | Gadus – Whitefish factory trawler to operate in Faroe Islands

VESSEL REVIEW | Gadus – Whitefish factory trawler to operate in Faroe Islands

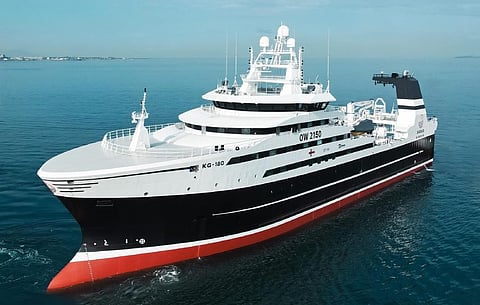

Photo: Tersan Shipyard

Faroe Islands-based fishing company JFK has taken delivery of a new freezer trawler built to a design by Norwegian naval architecture firm Skipsteknisk for operation in Arctic waters.

The DNV-classed Gadus has a length of 88.1 metres, a beam of 18.3 metres, a draught of 7.9 metres, a gross tonnage of 4,300, and accommodations for 43 crewmembers and fish factory personnel.

The vessel is fitted with triple trawling gear and designed to operate as a multi-rigger with four trawl winches supplied by Kongsberg Maritime. The winches are powered by PM motors specially designed for trawling in rough seas and extreme Arctic conditions with temperatures dropping to as low as –40 degrees Celsius.

Photo: Tersan Shipyard

The processing facilities include a shrimp factory, a fillet factory, and a fishmeal and fish oil plant. There will also be equipment for freezing of pelagic species in a hold with capacity for 2,060 cubic metres, which allows for the storage of up to 1,400 tonnes. Separate hold spaces are available for fishmeal and fish oil.

The factory facilities were provided by Bjørdal and are capable of handling such diverse species as cod, haddock, and Greenland halibut. The equipment has a rated output of 100 tonnes of frozen products per day.

The propulsion setup includes a 7,000kW main engine, which delivers a maximum speed of just over 15 knots.

The accommodation spaces include cabins, a mess, a galley, a lounge, a conference room, a gym, and a medical bay. Maritime Montering was responsible for the interior design work.

Gadus replaces an older vessel that has been in the JFK fleet since 2010.

Click here for more news and gear stories, feature articles, and vessel reviews as part of this month’s focus on fishing and aquaculture.

Type of vessel:Factory trawler
Flag:Faroe Islands
Owner:JFK, Faroe Islands
Designer:Skipsteknisk, Norway
Length overall:88.1 metres
Beam:18.3 metres
Draught:7.9 metres
Deadweight tonnage:3,086
Gross tonnage:4,300
Capacity:2,060 cubic metres
Main engine:7,000 kW
Maximum speed:15.1 knots
Winches:Kongsberg Maritime
Fish processing equipment:Bjørdal
Interior designer:Maritime Montering
Accommodation:Cabins; mess; galley; lounge; conference room; gym; medical bay
Operational area:Arctic
