VESSEL REVIEW | New RHIB fleet for Indonesian government services

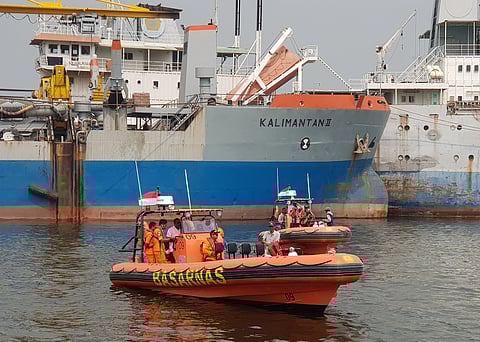

Strategic Marine has recently completed handover of 10 RHIB vessels for Indonesia’s national search and rescue agency, Badan Nasional Pencarian dan Pertolongan, commonly abbreviated to Basarnas.
The vessels are the latest in a string of orders from Indonesian government services and take the number of hulls delivered to date to a total of 32.

Designed by Australian design firm Southerly Designs, the craft represent the first significant deliveries of RHIB-style vessels from both designer and builder. To date the vessels have been delivered in two variants with 17 delivered for the Indonesian Navy, the foundation customer, and a further 15 delivered for Basarnas.

The original specification called for a RHIB-type vessel capable of 45 knots plus with seating of 12 passengers, two crew and space for a forward weapons mount, delivered at an economical price.

Following on from the navy orders, the Basarnas variant reduces seating to six and deletes the weapons mount – enabling greater operational deck space and sufficient clear deck to embark multiple stretchered patients.

The Basarnas specification also called for an alternate brand of outboard motor, greater range and fuel capacity, and a dedicated towing post, all of which were easily accommodated with minimal change to the basic design.

Both variants are equipped with a comprehensive suite of communications and navigation equipment, and built-in lifting lugs for easy lifting for delivery, deployment and maintenance.

Aluminium structures in accordance with Lloyds Register rules for special service craft and equipment and stability in accordance with UK MCA small police boat code ensures that these are rugged, stable, safe and well-equipped vessels.

Beyond efficient construction techniques a significant contributor to the economics of this vessel class is the ability for the complete vessel to be shipped within a standard 40-foot sea container.

The vessels fully rigged have an overall length of 10.7 metres, beam of 2.9 metres and height of 3.3 metres, yet the complete vessel, excluding outboard motors, is able to be fit within the container, enabling efficient shipping to any required port.

Suitable shipping dimensions are achieved through the use inflatable collars – rather than the foam collars that are becoming increasingly more prevalent on this class of vessel – and variously folding and removable accessories.

For example, the outboard motor guard bar folds flush with the targa bar, which is in turn hinged at the vessel bulwark, while the sun shade for the helm seating is a separate and detachable item. This configuration enables the vessels to be fully rigged, wired and tested– including all navigation lights, radars and other equipment, in the shipyard. The appendages are then simply folded up prior to packing in the container. On delivery rigging is simple and requires no technical input.

The relatively narrow beam dictated by the container dimensions drove the designer to adopt the use of a D-shaped inflatable collar – thus providing maximum deck space.

Additionally, the use of full height aluminium bulwarks and D-shaped collars means that the inflatable element does not actually form part of the watertight integrity of the hull, meaning that any damage to or puncture to the collar will not compromise the integrity of the vessel nor its initial stability, an invaluable feature when operating in potentially harsh conditions far removed from immediate access to rescue or repair.

Operationally, both variants have recently seen significant active deployment, supporting diving, search, and recovery operations as part of the high-profile response to the tragic loss of Lion Air flight 610 offshore Jakarta.

Basarnas 10.7-metre RHIBs
Type of vessel: SAR RHIB
Port of registry: Jakarta
Flag: Indonesia
Owner: Bayu Hutama Jaya, Indonesia
Operator: Indonesia Police
Designer: Southerly Designs, Australia
Builder: Strategic Marine, Singapore
Hull construction material: Aluminium
Plate cutting: CNC
Length overall: 10.7 metres
Length waterline: 9.5 metres
Beam: 2.9 metres
Draught: 0.45 metres
Gross tonnage: 4.3
Net tonnage: 3.21
Main engines: 2 x Yamaha F250 GETX
Maximum speed: 45+ knots
Electronics: Lowrance HDS – 12 GEN 2 touch screen 3G radar/plotter/sounder with C-Map & Navionics
Compass: Ritchie FN201 flush mount, magnetic
GMDSS: Lowrance VHF Marine Radio Link-8 DSC
Radio: Icom M710 HF SSB marine
GPS: Garmin Handheld GPS GPSMAP 78
Type of fuel: Petrol
Fuel capacity: 660 litres
Crew: 2
Passengers: 6
