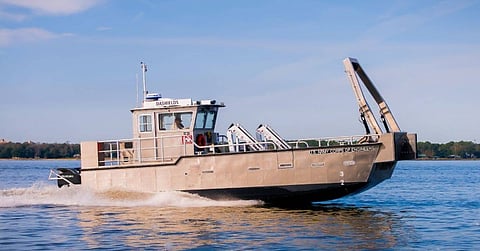

Photo: Silver Ships

The US Army Corps of Engineers (USACE) recently took delivery of a new river maintenance workboat from Alabama-based boatbuilder Silver Ships.

Dashields is the second in a series of three landing craft workboats built by Silver Ships for the USACE Pittsburgh District, the first being the 2022-built Allegheny River. The vessels will support the Pittsburgh District’s mission of improving navigable waterways and water infrastructure, particularly along the Allegheny and Monongahela Rivers in Pennsylvania.

Photo: Silver Ships

The custom-built, welded-aluminium vessel measures 40 feet (12 metres) long and is powered by twin 350hp (260kW) Suzuki outboard motors that provide enhanced manoeuvring capabilities for working in tight spaces. A modified vee hull with a recessed cargo bay provides a stable work platform. As a landing craft, the vessel offers high load-carrying capacity and a shallow draught for loading and unloading applications.

Other features include a walkaround cabin, Furuno navigation and radar systems, a Westerbeke 20kW generator, Maxilift cranes with 2,000-pound (907-kilogram) lifting capacities each, and an A-frame with a 3,000-pound (1,360-kilogram) lifting capacity.

As with other Silver Ships vessels, the hull is designed for strength and durability in compliance to ABS rules for high-speed naval craft.

Silver Ships said the workboat will support maintenance efforts of navigation locks and dams as well as buoy tendering operations.

Click here for more news stories, feature articles, and vessel reviews as part of this month’s focus on marine projects.

Type of vessel: Maintenance workboat
Classification: ABS
Flag: USA
Owner: US Army Corps of Engineers
Builder: Silver Ships, USA
Hull construction material: Aluminium
Superstructure construction material: Aluminium
Deck construction material: Aluminium
Length overall: 40 feet (12 metres)
Main engines: 2 x Suzuki outboards, each 350 hp (260 kW)
Generator: Westerbeke, 20 kW
Radars: Furuno
Cranes: Maxilift
Operational areas: Allegheny and Monongahela Rivers, Pennsylvania, USA
