VESSEL REVIEW | Estoril – Mozambique’s Emodraga takes delivery of quayside dredger

MARINE PROJECTS WEEK

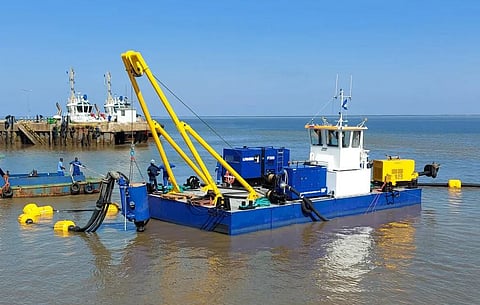

Photo: Damen

Mozambique-based dredging company Emodraga recently took delivery of a new dredger from the Damen Shipyards Group.

Named Estoril, the newbuild will be used primarily for maintenance dredging at the Port of Beira, which has long suffered from mud buildup on the quay walls due to inflows from the adjacent Buzi and Pungwa rivers. The sedimentation therefore requires continuous maintenance dredging of the port’s 12 berths, which are used by both large commercial ships and smaller fishing boats.

Estoril has a length of 16.2 metres, a beam of 1.8 metres, a draught of 1.3 metres, a displacement of 34 tonnes, and a total installed power of 156 kW that will allow it to dredge at depths of as much as 50 metres. Damen said the modular dredger is self-propelled and has a limited draught to enable it to reach all corners of the harbour. A tank with capacity for five cubic metres supplies fuel oil for both propulsion and dredging operations.

Photo: Damen

The dredger is capable of removing sediment at a rate of 800 cubic metres per hour with the aid of a submersible pump fitted with a jet water-assisted suction head for taking on high mixture concentrations. Transport company the LBH Group said the dredger will be able to perform maintenance dredging at a single berth at a time, without the need for the berths to all be vacated for a period, as was the case before. This then allows other operations at Mozambique’s second largest port to proceed uninterrupted even as dredging is underway, thereby ensuring the continued flow of vessel traffic.

Operation is done by only one crewmember from a control cabin with an ergonomic layout for enhanced efficiency. The instrumentation includes a dredging depth indicator, a pump pressure indicator, and a pump RPM indicator. The deck machinery meanwhile consists of a hoisting winch and three manoeuvring winches.

Thanks to its modular construction, the dredger can be dismounted and easily transported by truck, even to remote locations. Additionally, reassembly can be done swiftly due to the limited unit weight.

Christopher Huvers, Regional Director Africa at Damen Shipyards, said that Estoril will also be put to use to dredge other rivers throughout Mozambique.

Photo: LBH South Africa

Click here for more news stories, feature articles, and vessel reviews as part of this month’s focus on marine projects.

Estoril
SPECIFICATIONS
Type of vessel:Suction dredger
Owner:Emodraga, Mozambique
Builder:Damen Shipyards Group, Netherlands
Length overall:16.2 metres
Beam:1.8 metres
Draught:1.3 metres
Displacement:34 tonnes
Other electronics:Dredging depth indicator; pump pressure indicator; pump RPM indicator
Winches:4
Dredging equipment:Pump; suction head
Fuel capacity:5.0 cubic metres
Crew:1
Operational area:Beira, Mozambique
