VESSEL REVIEW | Freya – “Evil billionaire’s lair” on the water

Richardson Devine Marine Constructions was selected through a competitive tender process to build Mona Roma II (MR-2) – formally named Freya, after the Norse goddess, who is aptly described as “something of a party girl”.

The owners had a previous 35-metre vessel (MR-1) designed by Kim Chamberlin’s firm Commercial Boat Design. They asked Kim to design a vessel of similar lines and characteristics but downsized to 29 metres.

“The greatest challenge was to fit the functionality and equipment of our previous 34-metre design into a smaller 29-metre platform,” commented Mr Chamberlin. “Whilst doing this our often competing goal was to maximise efficiency in order to keep the operating costs per head comparable to the larger vessel. In the end, even with the considerable fitout resulting in a full load displacement of 105 tonnes, this was immensely successful and she carries the weight with efficient ease.

“We also once again had to contend with the very shallow water requirements of the route whilst maintaining conventional propeller propulsion. Luckily this is something to which our unique hullform is very much suited. Other vessels have suffered difficulty accelerating up to speed in the shallows, however this vessel has no issues at all in this regard, with impressive acceleration in both shallow and deep water.”

The vessel is unlike any other in layout and style, providing the versatility that the operator sought to be able to utilise the boat across a number of roles, from regular passenger service to Hobart’s famous Museum of Old and New Art (MONA), to catering for weddings or extravagant corporate functions.

The thirty-minute ferry ride from Brooke Street Pier in downtown Hobart to MONA is a much-loved part of the MONA experience, and the new ferry builds on that tradition.

Interior designers Georgina Freeman and Damian Scott decided the new ferry should feel like an evil billionaire’s lair, with nods to James Bond and Austin Powers. As a result you’ll find shag pile carpet, wallaby fur lined booths, wood panelling, mirrored ceilings, a gold walled latrine and an exotic jungle on the top deck featuring tigers and monkeys.

Extra height windows were requested for an open, spacious and light feel, as was high clearances to deck head linings of 2,300 mm.

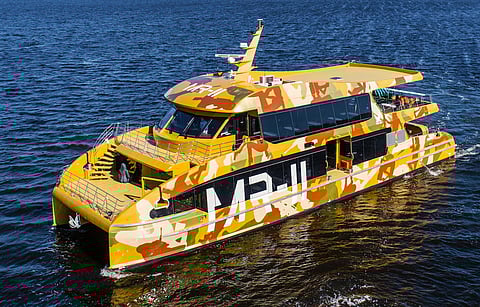

The tongue-in-cheek theme extends to the exterior treatment of the ferry, with the vessel wrapped in what the designers have described as “subliminal camouflage”, which may or may not involve images of nude villainesses with machine guns.

“We’re fairly confident in will be the most Instagrammable ferry in Berriedale,” commented MONA Director of Marketing and Communication Robbie Brammall.

Interior passenger volume is maximised with her wheelhouse set well forward on the upper deck. A notable difference from most passenger ferries is the interior layout. There are no rows of seats, but being an evil billionaire’s lair there are fully stocked bars every few metres, so guests can arrive at MONA fully hydrated. Casual seating is laid mainly around the perimeter of each passenger space.

The vessel was commissioned to meet expanding visitor demand at MONA, which now exceeds 400,000 visitors a year – 180,000 of whom choose to arrive by ferry. The extra capacity will enable an expanded timetable and some much anticipated new products – like an after hours ferry that will bring diners to MONA’s restaurants long after the museum has shut for the day.

She will also be available to provide ferry services between Hobart city and the planned MONA hotel. During periods of lower demand where the larger vessel can handle the MONA ferry demand, Freya can be made available for charter with a broad variety of service offerings.

Another notable feature of the new ferry is an expanded “posh pit”, which is an opulent VIP club in the forward section of the vessel, with exclusive booths, plush carpet, velvet upholstered arm chairs and a mirrored ceiling, where guests are treated to complimentary drinks and canapes. And yes, it also features a gorilla.

The vessel is in 1E service for operations in the River Derwent but can easily be changed to 1D if required for future operations.

Two MAN D22862 LE 463 marine diesel engines capable of providing 1,050 kW at 2,100 rpm run conventional shafts and five-blade Mikado propellers through Twin Disc MGX-6620SC gearboxes. During trials a maximum speed of 33 knots was achieved at MCR. With the engines regulated to 710 kW, maximum speed attained was 29 knots.

Further regulated for manning and survey requirements and to meet her maximum operational service speed of 25 knots, Freya is exceptionally efficient, with the engines running at just 66 per cent load. This should equate to exceptional fuel efficiency for the clients as well as what should be significantly increased engine life.

Should the vessel be on sold or her service requirements alter, with a change in survey status, the operator has the option to call for more power from the installed powerplant as required.

“Some refinements to our hullform after tank testing and further R&D have taken what was already an extraordinarily efficient design to a whole new level, whilst maintaining generous hull interior space to accommodate machinery and equipment,” commented Mr Chamberlin.

Kohler gensets in sound shields with special attention to minimising any vibrations or rattles along with under carpet and engine room sound proofing insulation offer a quiet, smooth ride.

The design was required to carry sufficient fuel to go a week between refuelling during peak periods and 2,000 litres of both fresh water and sullage.

A mainly Simrad suite of electronics was selected for the vessel to offer fleet continuity for the operator. Simrad had proven to be a reliable choice previously and maintaining brand continuity makes for an easier transition for skippers as they transfer from vessel to vessel. Moonraker aerials were used for the Icom communication equipment.

A FLIR night vision camera was installed that is continuously recorded through a DVR. The calm water route in the upper reaches of the River Derwent is a popular area for rowers and kayakers so a keen lookout is important and the FLIR is a valuable aid.

The only piece of significant conventional deck equipment is the Apco custom drum anchor winch. The RDM standard is to install the anchor winch in a recessed well under the foredeck with flush deck hatches, providing an accessible and safe area for passengers to enjoy their cruise.

More interesting to the passengers perhaps is the life size gorilla on the foredeck, the two tigers on the aft deck and the monkeys swinging from the deckhead.



{tabulizer:include style[rs_oy1yy6y0.css] id[tab_MpuhxWyWaW]}

Freya (Mona Roma II)
Type of vessel: Ferry/tourist boat
In survey to: 1E
Home port: Hobart, Australia
Operator: Navigators, Australia
Designer: Commercial Boat Design, Australia
Builder: Richardson Devine Marine Constructions, Australia
Construction material: Marine grade aluminium
Length overall: 28.9 metres
Length waterline: 28.7 metres
Beam: 9.0 metres
Draught: 1.3 metres
Depth: 4.1 metres
Displacement: 103 tonnes (full load)
Deadweight: 28
Main engines: 2 x MAN D22862 LE 463, each 1,050 kW @ 2,100 rpm
Gearboxes: 2 x Twin Disc MGX-6620SC
Propulsion: 2 x Mikado five-blade propellers
Generators: 2 x Kohler 45 EFOZDJ, each 51 kVA in sound shields
Steering: Electric/hydraulic (RIMS)
Exhaust system: Dry exhaust (Exhaust Control Industries)
Maximum unlimited speed: 33 knots (1,049 kW)
Maximum hp limited speed: 29 knots (710 kW)
Operational limited speed: 24.9 knots
Electronics supplied by: Island Marine

Simrad 4G broadband;

10 kW 6″ scanner”

Depth sounder: Simrad
Radio: Icom
Autopilot: Simrad
Compass: Simrad Satcompass
GPS: Simrad
Plotters: Simrad
AIS: Simrad Class B
Other electronics: Moonraker aerials
Plumbing: GA Davis Plumbing/Reece
Capstan: Apco
Air conditioning: Daikin

Wattyl (above waterline);

Jotun (below waterline)

Windows: Marine and Mobile Windows
Hydraulics: RIMS

Beurteaux (helm);

Custom (other)

Lighting: Hella
Fire insulation: Fyrewrap
Panelling: Ayers/Laminex
Safety flooring: Amtico/Armstrong
Safety equipment: RFD
Liferafts: RFD
Fuel capacity: 8,000 litres
Freshwater capacity: 2,000 litres
Passengers: 190
Crew: 8
