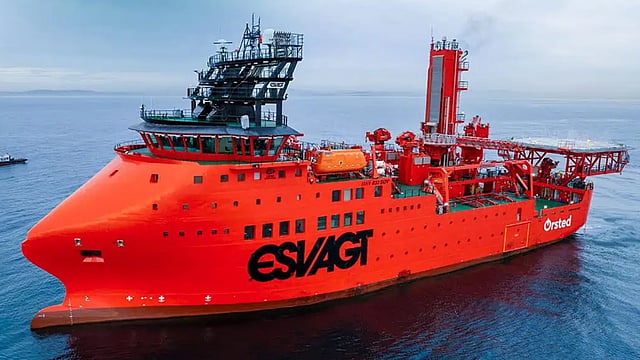

Danish offshore support specialist Esvagt has expanded its fleet with the recent acquisition of a new windfarm service operation vessel (SOV) designed by Norway’s Hav Design.
The hybrid-powered Esvagt Robert Boyle is fitted with batteries and two dual-fuel main engines to help reduce CO2 emissions The methanol to be used to power the vessel will be generated from renewable sources such as wind and biogenic carbon.
According to Esvagt, the vessel is the world’s first SOV to be powered by “e-methanol.”
The 93-metre (310-foot), 6,774GT vessel boasts accommodation for up to 124 personnel and a motion-compensated gangway and dynamic positioning system to ensure safe transfers to and from offshore wind turbines.
A helicopter deck is also fitted at the stern to permit rapid crew changes out at sea while two lifeboats are mounted on the superstructure just aft of the bridge should evacuation become necessary.
The vessel has a warehouse, workshops, and storage for spare parts, thus minimising the need for return trips for resupplying in port. The SOV’s other key equipment includes a Cool 4 Sea and Industry chiller system and an Ulmatec Thermal Solutions waste heat recovery system.
The accommodation spaces include single cabins, offices, conference rooms, fitness facilities, and recreational areas. All these spaces benefit from HVAC coverage.
Following her delivery late last year, Esvagt Robert Boyle has been operating in support of the activities of Danish energy company Ørsted at the Hornsea Two offshore wind farm located off the Yorkshire coast in the UK North Sea.
Design work on the SOV was undertaken in compliance with Danish flag requirements and DNV class rules. She is also the tenth SOV to be designed by Hav Design for Esvagt.
Construction is underway on another vessel from the same series.
| Esvagt Robert Boyle | |
|---|---|
| SPECIFICATIONS | |
| Type of vessel: | Service operation vessel |
| Classification: | DNV +1A BIS Biofuelled Battery(Power) BWM(T) Clean(Design) COMF(C-2, V-2) DYNPOS(AUTR) E0 HELDK(S) LCS LFL fuelled NAUT(OSV) Recyclable SF SMART(EEN) SPS Strengthened(DK) ER(SCR, TIER III) |
| Flag: | Denmark |
| Owner: | Esvagt, Denmark |
| Designer: | Hav Design, Norway |
| Length overall: | 93 metres (310 feet) |
| Beam: | 19.6 metres (64.3 feet) |
| Draught: | 6.3 metres (21 feet) |
| Depth: | 8.0 metres (26 feet) |
| Deadweight tonnage: | 2500 |
| Gross tonnage: | 6774 |
| Net tonnage: | 2033 |
| Main engines: | 2 |
| Other deck equipment: | Gangway |
| Other equipment installed: | Cool 4 Sea and Industrial chiller; Ulmatec waste heat recovery system; helicopter deck |
| Interior fitout: | HVAC |
| Lifeboats: | 2 |
| Type of fuel: | Methanol |
| Accommodation: | Cabins; conference rooms; offices; fitness facilities; recreational areas |
| Crew: | 124 |
| Operational area: | North Sea |
